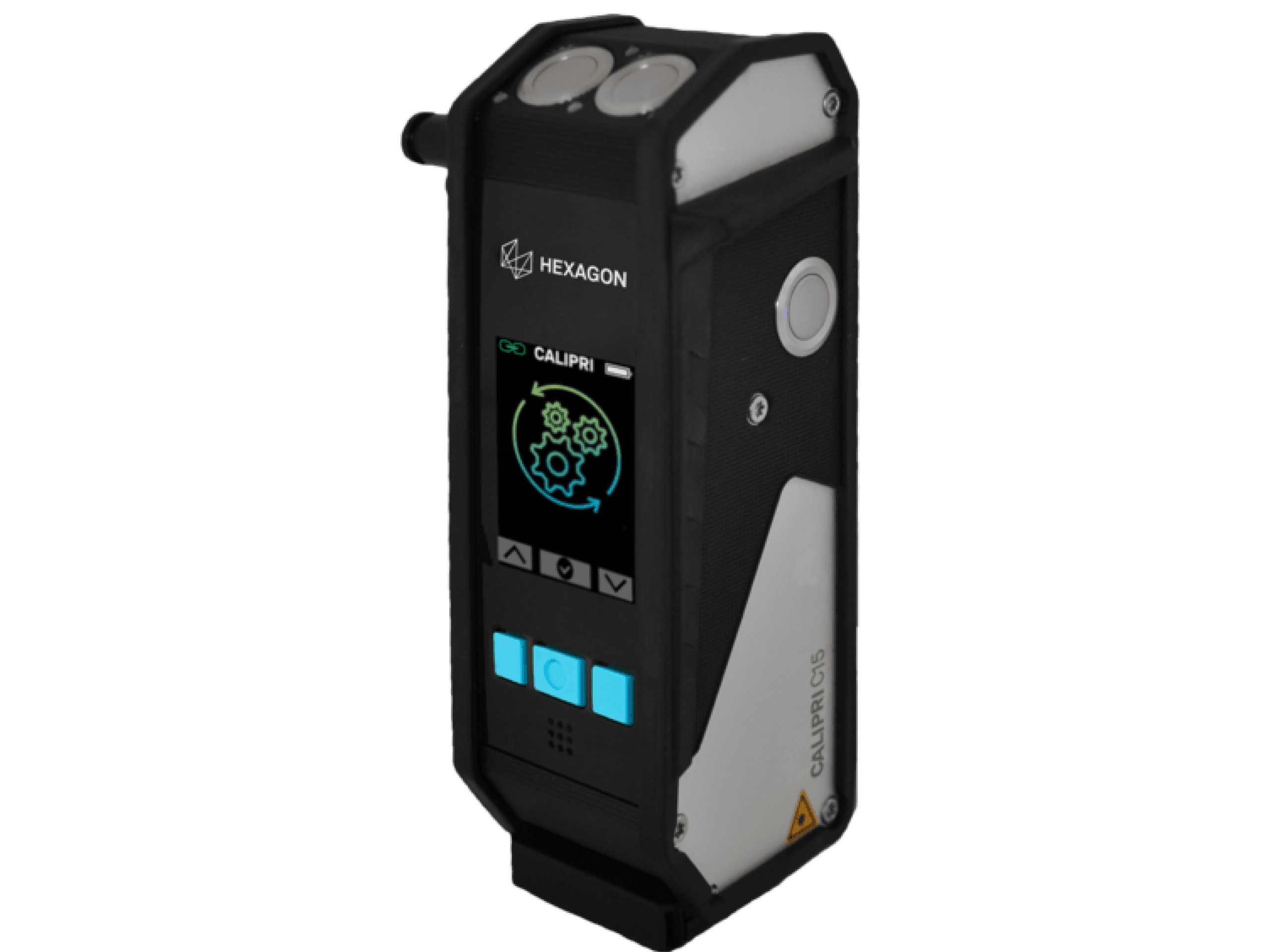

CALIPRI C15
Designed for gap and flush inspection on the moving vehicle production line, the CALIPRI C15 offers accurate results with minimal training.
Handheld measurement systems for inline flush and gap inspection in automotive
The CALIPRI C15 model brings extra flexibility to handheld inline measurement in production and assembly lines. The CALIPRI C15 wireless non-contact inline measurement device uses laser light section technology and supports continuous hand-guided gap and flush measurements on a production line.
The C15 exists in two versions, the C15 Fix for use at a single workstation, and the portable C15 Flex, which is designed for versatility and can be moved easily from one production line to another.
CALIPRI C15 Specifications
Measurement capability
Flush & gap - Manual measurement, in-line measurement
Technology
Non-contact laser light section with patented CALIPRI principle
Laser class
2M
Measurement time
1~4 sec/measuring point
Operation
Inline, manual, wireless, hot swap battery
Gap size range
50 x 50 mm
Accuracy & repeatability
Accuracy < +/- 30μm,
Repeatability < +/-15µm
Data export
csv, xml, pdf, customer specific
