DPA Entry
DPA Entry allows simple measurements within less challenging production environments using the power of digital photogrammetric analysis.
Entry-level photogrammetry

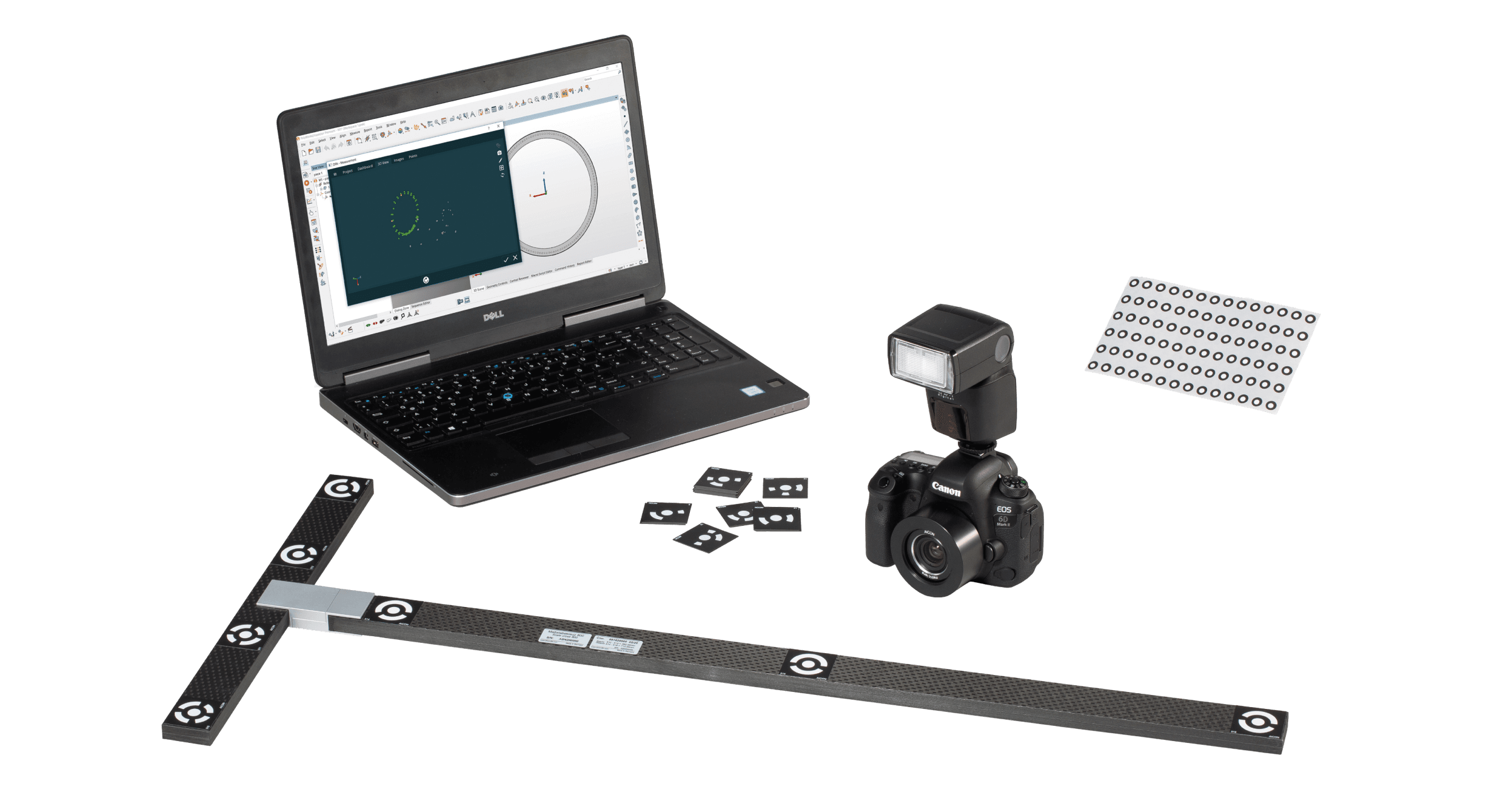

Featuring a quality mid-range digital camera and a basic selection of measurement targets, DPA Entry is part of the DPA Series.
It is the perfect system for well-trained users familiar with the principles of photogrammetry and capable of taking full control of the measurement process, including all required camera settings. With its selection of targets and high-definition camera quality, DPA Entry delivers sufficient accuracy for the wide range of applications that present relatively simple parts for analysis.
DPA Entry Specifications
Sensor unit
Canon EOS 6D
Camera resolution
20.2 MP | 5472 x 3648
Speed
Up to 4 images / sec
View finder
Diopter
Sensor weight
1.4 kg
Wireless data transfer
Not supported
Accuracy (MPE₁)
25 μm + 25 μm * Length diagonal [m]
Certification
Opt. VDI 2634 page 1 certified system
₁ MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as maximum permissible deviation of a measured length, which is located between two measuring points, signalised with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.
