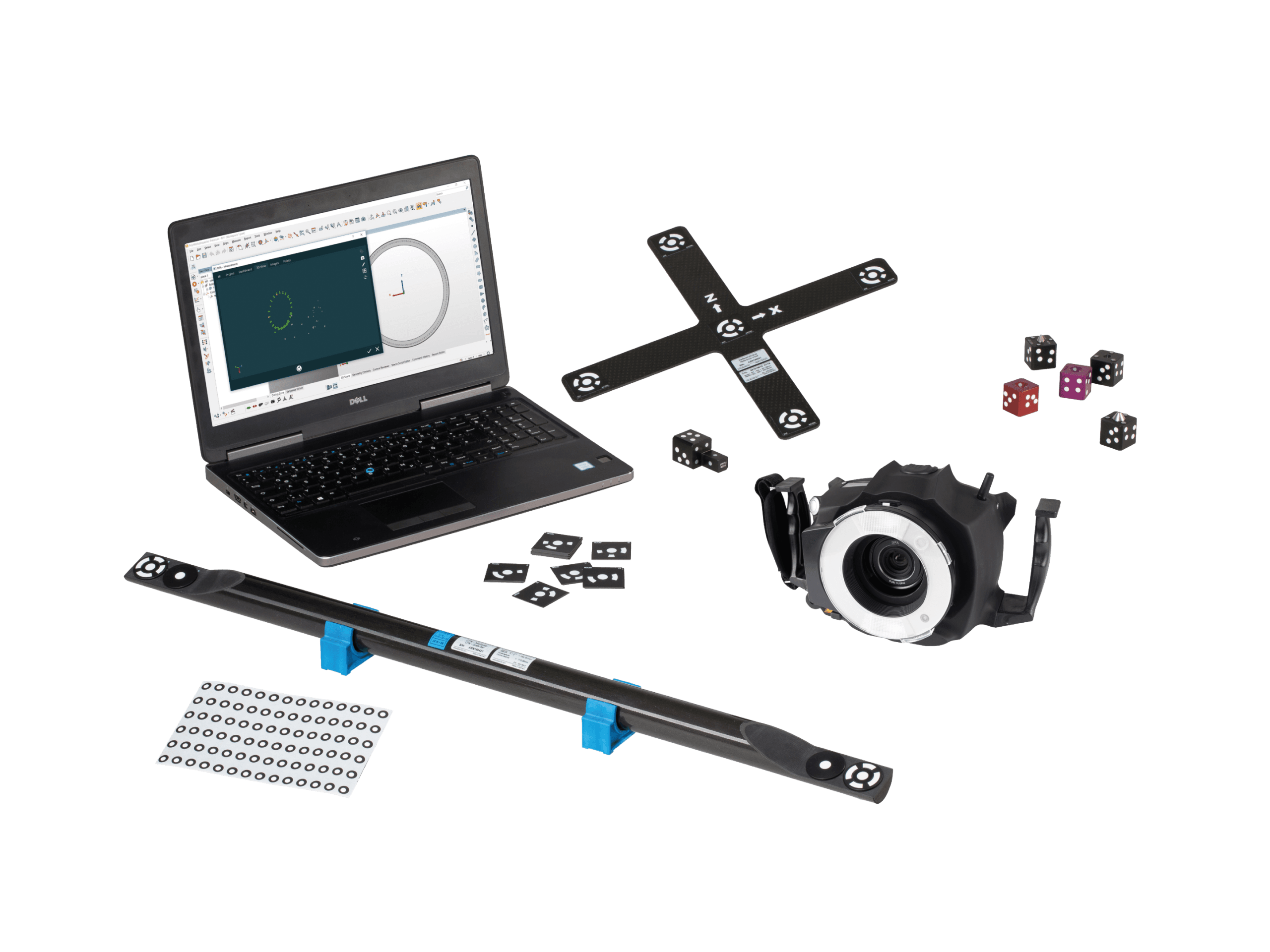

DPA Industrial

Overcome harsh shop floor or outdoor conditions with the durable DPA Industrial photogrammetry system.

harware-info-image

High-end shop-floor photogrammetry made easy

The C1 Camera is a 50-megapixel digital camera contained within an IP51-rated housing that makes it ideal for use on the shop floor, in the workshop or in outdoor environments. As well as its tough casing, it boasts a simplified control schema that reduces user interaction to targeting and image capture, aided by a laser targeting grid that is projected onto the measurement object.

benefits

Metrology-grade accuracy

Robust protective casing

Cable-free operation

Dedicated viewfinder for easy targeting

Resilience meets simplicity

Built around the robust industrial-grade casing of the custom-designed C1 Camera, DPA Industrial is a high-end photogrammetry system that has been specifically created for both resilience and simplicity.

DPA Industrial Specifications

Sensor unit

C1Camera

Camera resolution​

50.6 MP | 8688 x 5792

Speed

Up to 5 images / sec.

View finder​

Laser pattern, laser class 1M diopter

Sensor weight​

2.8 kg

Wireless data transfer​

Integrated Wi-Fi 802.11n / 2.4 GHz / WPA2 / PSK

Accuracy (MPE₁)

15 μm + 15 μm * Length diagonal [m]

Certification​

VDI 2634 page 1 certified system

₁ MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as maximum permissible deviation of a measured length, which is located between two measuring points, signalised with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.
