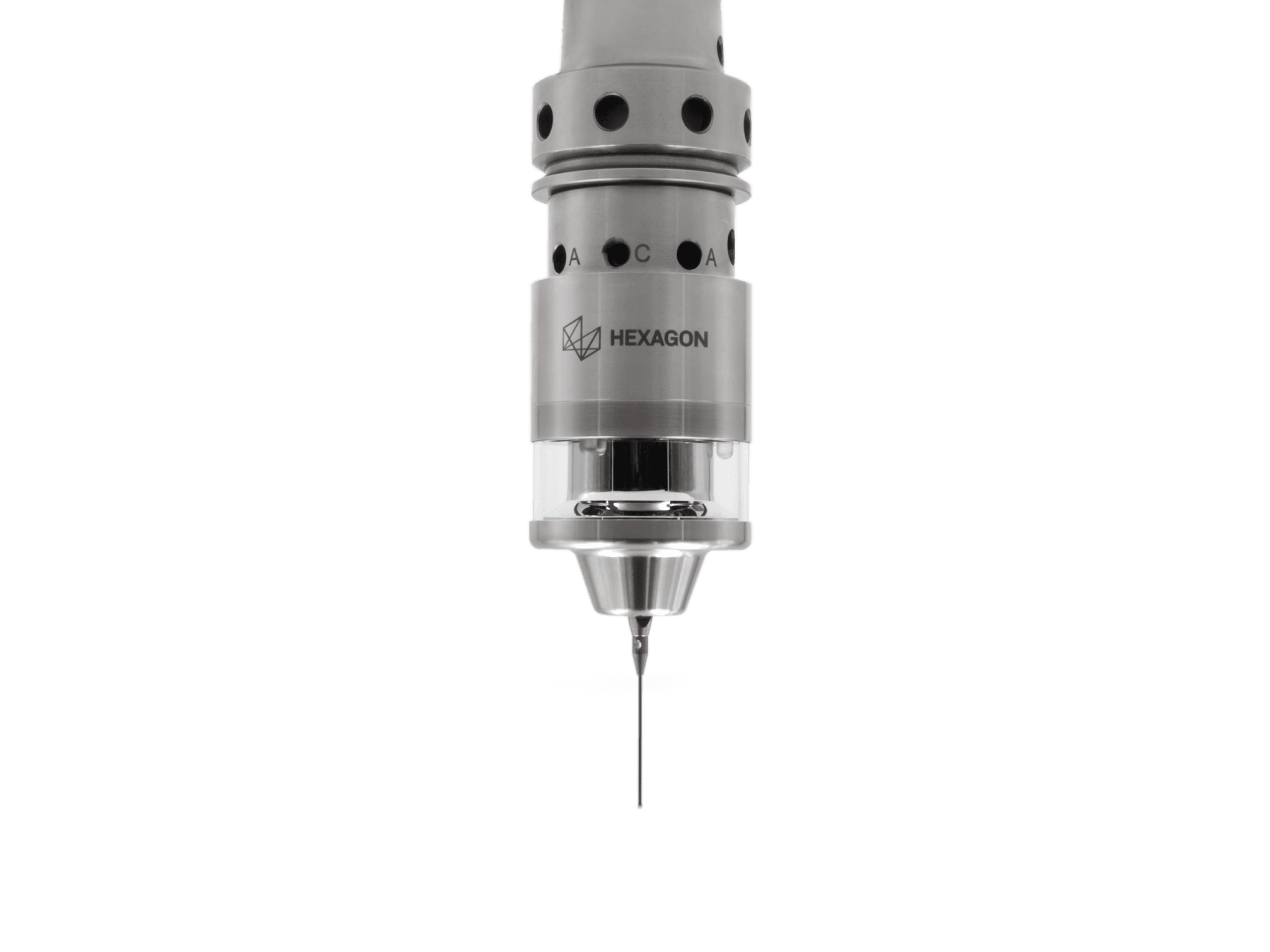

Infrared Probe m&h IRP40.42
Low trigger forces and small styli balls for measuring delicate applications.
Fast, repeatable measurements on coordinate measuring devices
The infrared touch probe IRP40.42 has been specially designed to measure sensitive materials and thin, fragile workpiece geometries in harsh machine tool environments. The IRP40.42 combines the strengths of the IRP40.02 touch probe with a highly versatile touch trigger probe developed by Hexagon for taking fast, repeatable measurements on coordinate measuring devices.
The trigger forces of the IRP40.42 remain consistently low even at higher probing speeds and greater stylus overtravel, protecting your sensitive workpieces from damage. The IRP40.42 has a repeatability of 2 Sigma 1 μm and can be equipped with styli and stylus balls as small as 0.2 mm.
Infrared Probe m&h IRP40.42 Specifications
Accuracy
Max. 1 μm (2 Sigma) with 20 mm stylus and 254 mm/min probing feed rate
Triggering force
X/Y = 0,06 ±0,02 N; Z = 0,8 N ±0,1N
Temperature range
Operation: 10°- 50°C
Storage: 5°- 70°C
Power supply
2x battery (3,6 V / ½ A A)
Protection class
IP68: EN60529
Signal transmission
Infrared
