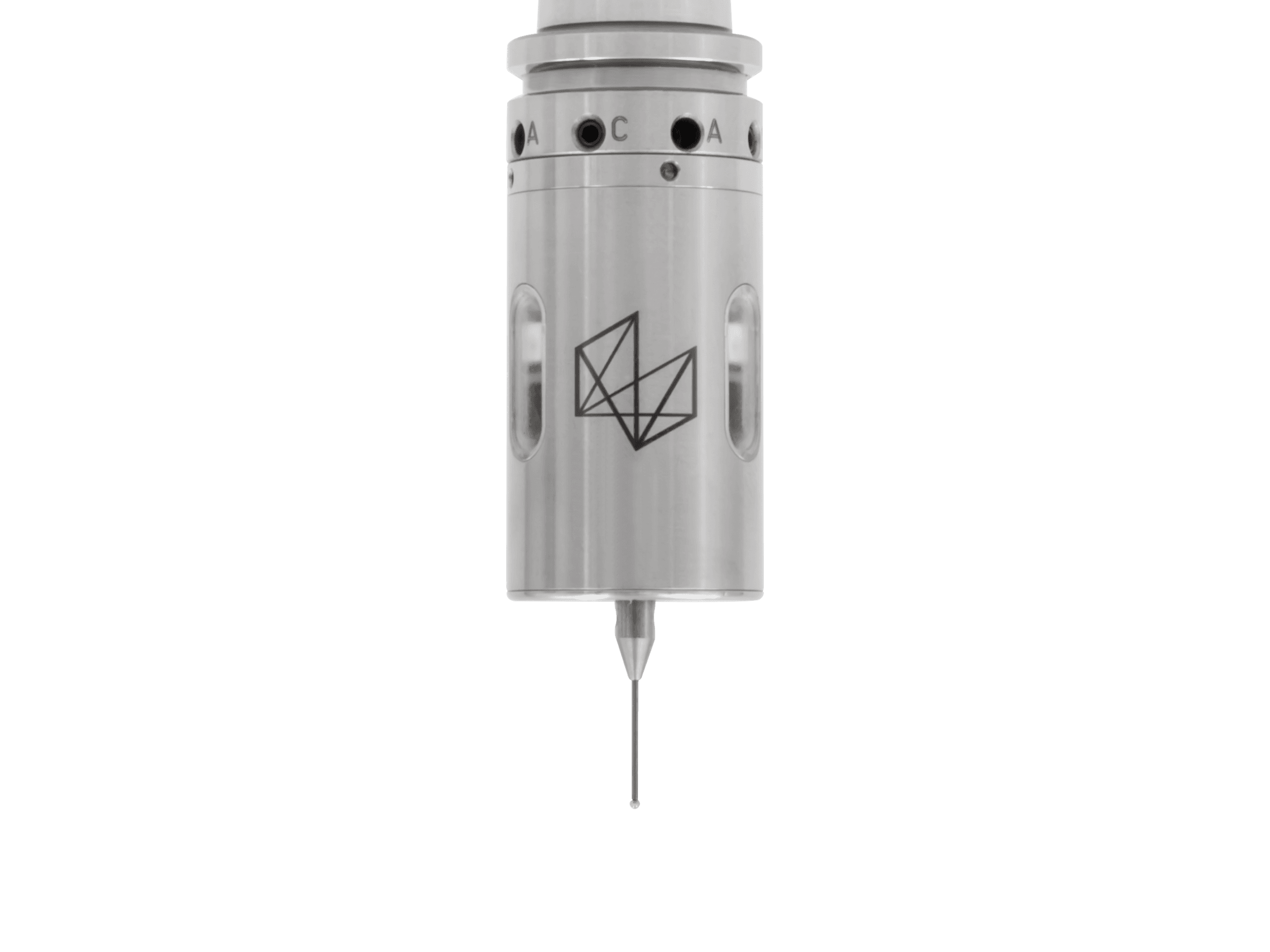

Infrared Probe m&h IRP40.50
The probe can find a place in any small machining center and leave sufficient space so that measurement is also possible on the Z axis.
The smallest infrared probe in the world
The ultrasmall infrared probe IRP40.50, with a diameter of only 25 millimeters and a length of 42.4 millimeters, can find a place in any small machining center and leaves sufficient space so that measurement is also possible on the Z axis without danger of collision. The IRP40.50 is highly precise and is also suitable for small and delicate workpieces with a low probing force of 0.7 N (X/Y). It goes without saying that the m&h IRP40.50 also has proven HDR infrared transmission.
Benefits:
- The smallest infrared probe in the world
- Reliable bidirectional HDR infrared transmission
- Energy-efficient and economical
Infrared Probe m&h IRP40.50 Specifications
Accuracy
1μm (max. 2 Sigma) and 100 mm/min
Triggering force
X/Y = 1,3 N, Z = 3 N
Temperature range
Operation: 10°- 50°C
Storage: 5°- 70°C
Power supply
3 x batteries 3 V, Type CR2032
Protection class
IP68: EN60529
Signal transmission
Infrared
