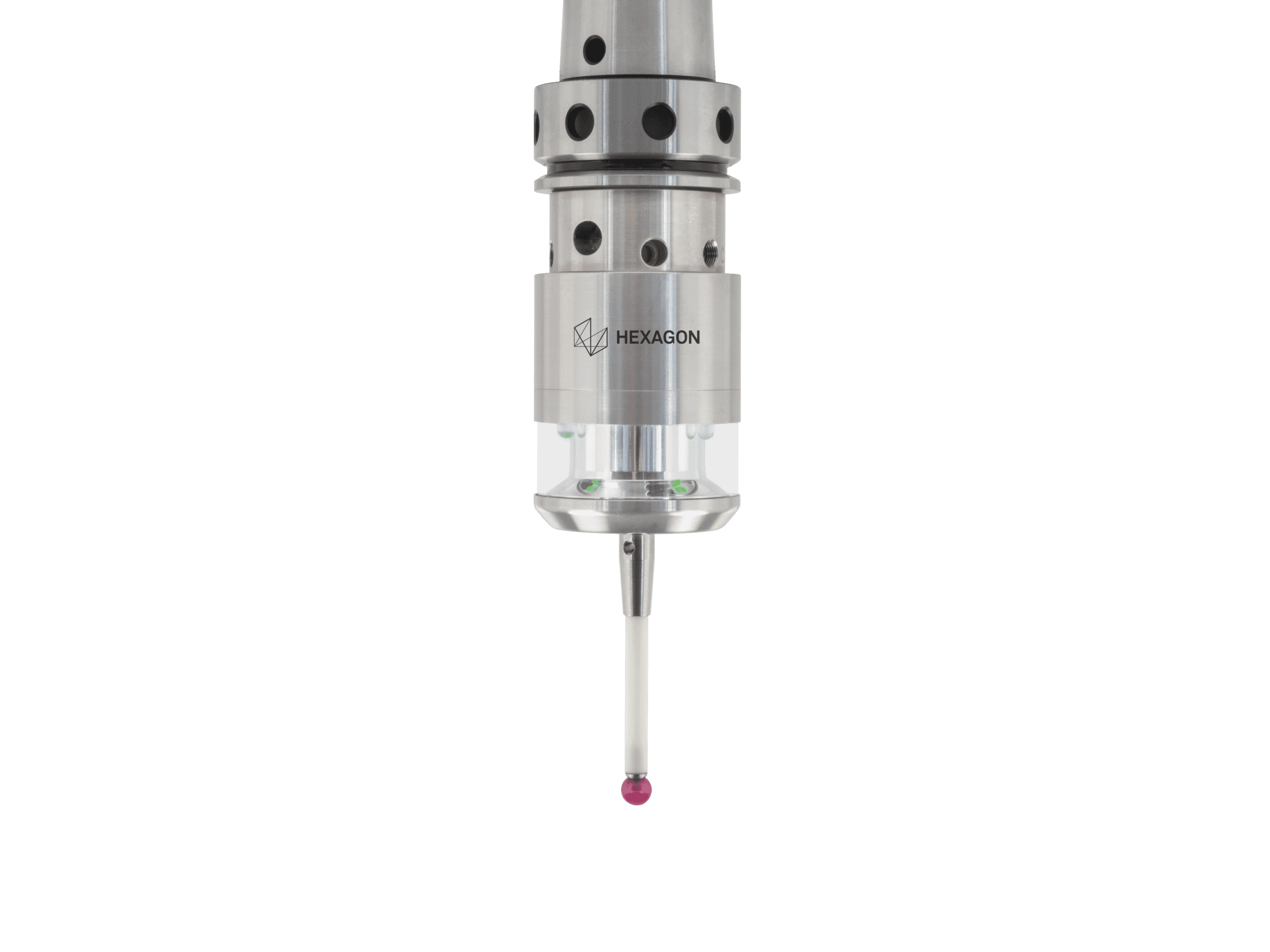

Infrared Probe m&h IRP40.02

Combine an optimized measuring strategy with process reliability to meet all machine tool measuring requirements.

Skip to

The infrared touch probe for mass production

The m&h IRP40.02 infrared touch probe system meets all requirements for measurement on the machine tool. Extreme accelerations, high positioning speeds, constant vibrations, hard tool changes, increased temperatures and aggressive coolants pose no problems for m&h touch probes. m&h’s precision mechanics can continue to switch extremely precisely and without wear for years under all these conditions.

Infrared Probe m&h IRP40.02 Specifications

Accuracy

max. 0,5 μm (2 Sigma) with 50 mm Stylus and 254 mm/min

Triggering force

X/Y = 0,8 N(₁), Z = 5,7 N(₁)

Temperature range

Operation: 5°- 55°C

Storage: 5°- 70°C

Power supply

2x battery (3,6 V / ½ A A)

Protection class

IP68: EN60529

Signal transmission

Infrared

₁ with 50 mm stylus

HxGN NC Measure (Software)

Intuitive, versatile, and user-friendly, simplify inspection processes for a range of parts on the machine tool.

Infrared Receiver m&h IRR91.50

Communicate with two probing systems simultaneously on the same machine while eliminating ambient light interference.

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.

Infrared Receiver m&h IRR91.42

IRR91.42 reliably receives measurement and temperature data. It can communicate with m&h infrared probes and infrared tool setters.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.
