Benefits And Features
G-code certification, optimization & documentation for CNC machining

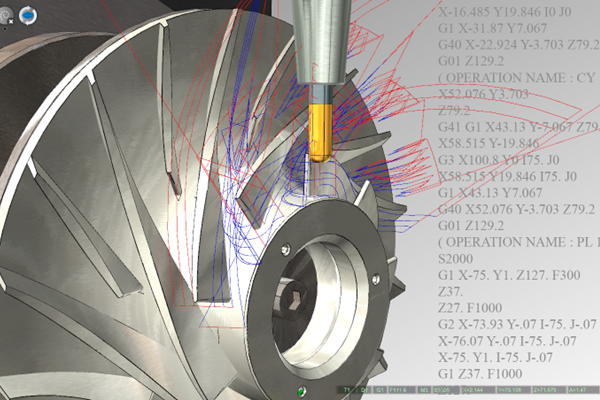

G-code verification
G-code verification includes a full CNC program and macro decoding and validation with automatic programming error detection, interactive tool path tracing, interactive machine display, and delivers the accurate machining cycle time.

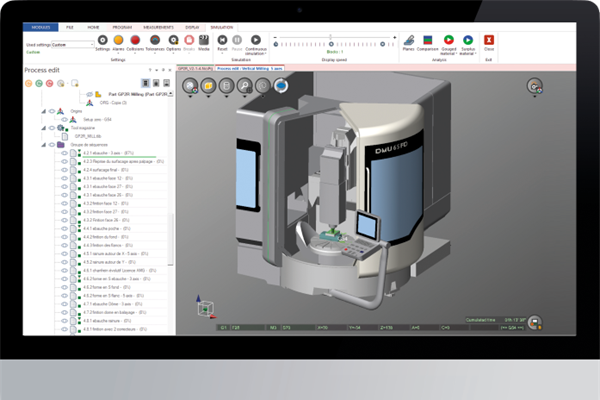

Full machine simulation
The Digital Twin machines provide realistic simulation and material cutting, detecting errors and collisions before machining (such as rapid motions in material, machining with spindle stopped or cutting over the flute length). CNC simulation includes probe devices macro, tool changes and machine accessories.

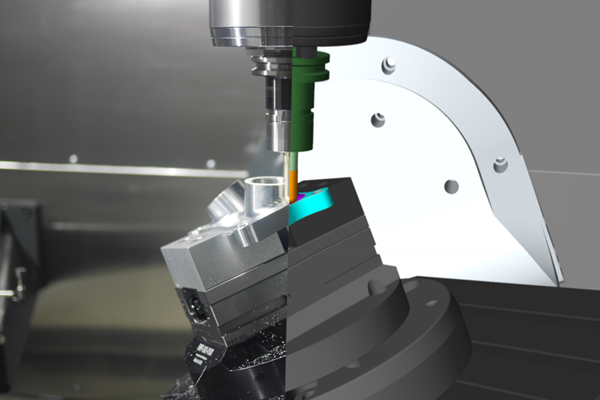

Precise part inspection
Part gouging or material residual in comparison to the design model can be quickly and easily performed with user-defined tolerances. Dynamic 3D sectioning enables further analysis of the internal part structure and measurement for wall thickness or pocket and drilling depths.
You might be interested in...
Related products
Training and Resources
Maximize your machine productivity with a Digital Twin
Directly enhance the quality of machining operations to reduce manufacturing costs, decrease setup times, and eliminate all programming errors. NCSIMUL is the Universal Digital Twin Certification & Optimization solution to guarantee a 100% crash/edit free machine code. NCSIMUL is CAM and CNC machine agnostic.
The benefits of using NCSIMUL include:
Downloads are only available on the desktop version. Please access our site from a desktop to download.
Frequently Asked Questions
How do I create a new working environment?
NCSIMUL allows you to create several working environments. Users can create working environments corresponding to names of parts, workshops, clients or any other name.
When using NCSIMUL for the first time, the Public, DEMO NCSIMUL CAM, DEMO NCSIMUL MACHINE and TRAINING NCSIMUL SOLUTIONS working environments are already created. Details can be found here.
How do I reduce the speed of movements in material during a real-time simulation?
The control of the display of speed of the movements in material during simulation is configured by the Display speed of work moves in real time option as detailed here.
Can I view the dimensions of the machined component in NCSIMUL?
The feature for managing dimensions is part of the NC Report module.The option is available from the DOCUMENTATION tab once a simulation has been run. This is detailed here.
Can I replicate the mouse behavior of my favorite CAM software?
The option is available from the File > Preferences > Controls. This allows the user to align the mouse shortcuts in NCSIMUL with those of their favorite CAM software for a working environment. Learn more.
Can I compare the reference part and the machined stock after the machining simulation?
The comparison between the machined stock and the reference part can be performed during a machining simulation that has been stopped or after the simulation is completed. For details, please refer to this article.
