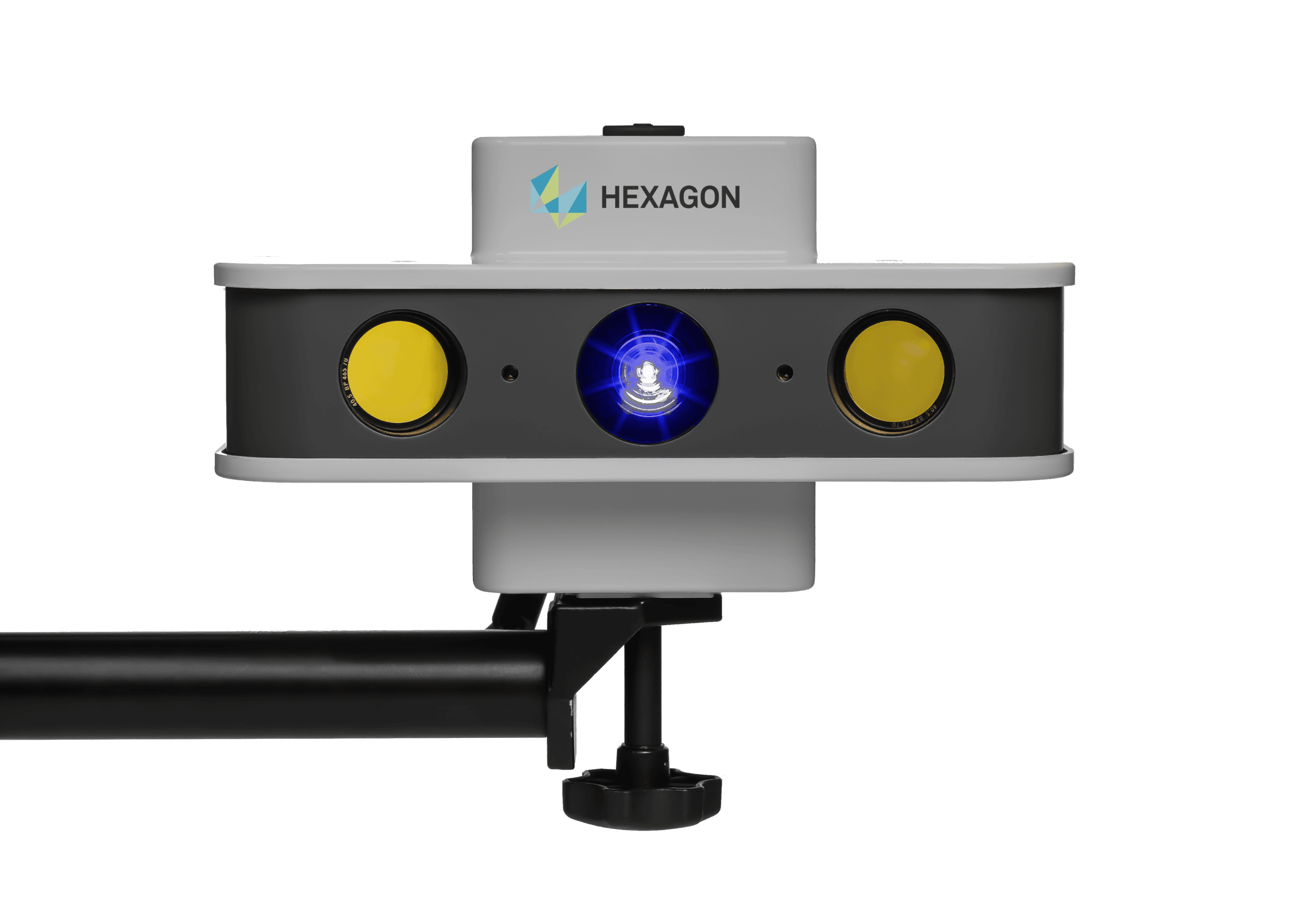

PRIMEScan

Simple and precise optical 3D scanning

The PrimeScan optical 3D scanner line from Hexagon is an attractive entry-level solution for highly precise 3D digitisation of industrial components. Like other Hexagon structured light scanner models, the PrimeScan is based on fringe projection technology that provides the strongest luminous power and highest projection quality.

Training and Resources

PRIMEScan Specifications

Camera sensor	Camera resolution	Projection unit	Min. measuring time
Monochrome, CMOS, 2/3” Monochrome, CCD 1”	5.0 MP \| 2448 x 2078 8.0 MP \| 3264 x 2448	Miniaturized projection technique	1 sec.
Sensor weight	Control unit	Accuracy₁
3.8 kg	Integrated, USB 3.0	From 4 μm (PrimeScan R5) From 6 μm (PrimeScan R8)

Camera sensor

Camera resolution

Projection unit

Min. measuring time

Monochrome, CMOS, 2/3”

Monochrome, CCD 1”

5.0 MP | 2448 x 2078

8.0 MP | 3264 x 2448

Miniaturized projection technique

1 sec.

Sensor weight

Control unit

Accuracy₁

3.8 kg

Integrated, USB 3.0

From 4 μm (PrimeScan R5)

From 6 μm (PrimeScan R8)

Camera sensor
Monochrome, CMOS, 2/3” Monochrome, CCD 1”
Camera resolution
5.0 MP \| 2448 x 2078 8.0 MP \| 3264 x 2448
Projection unit
Miniaturized projection technique
Min. measuring time
1 sec.
Sensor weight
3.8 kg
Control unit
Integrated, USB 3.0
Accuracy₁
From 4 μm (PrimeScan R5) From 6 μm (PrimeScan R8)

₁ Sphere spacing error.
