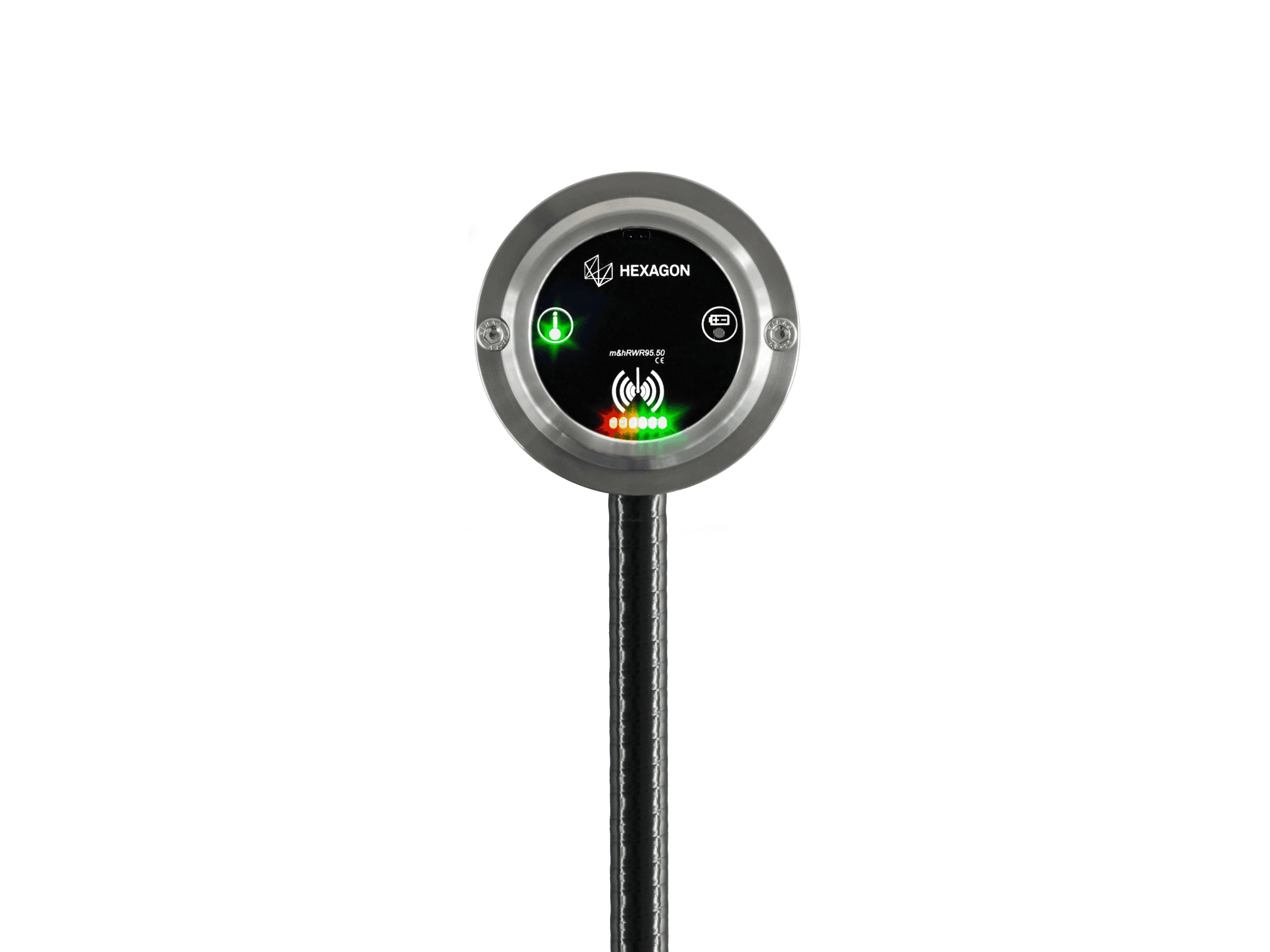

Radio Receiver m&h RC-R-100

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.

Skip to

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio

The radio receiver m&h RC-R-100 communicates with radio-wave touch probes in the 2.4 GHz range and can be easily mounted in the machine room. The receiver supports bidirectional communication for up to 8 probes on the same machine.

Radio Receiver m&h RC-R-100 Specifications

Temperature range

Operation: 10° - 50°C

Storage: 5° - 70°C

Power supply

12 - 30 VDC, max. 400 mA

Protection class

IP68: EN60529, IEC529/DIN40050

Signal transmission

Radio wave
