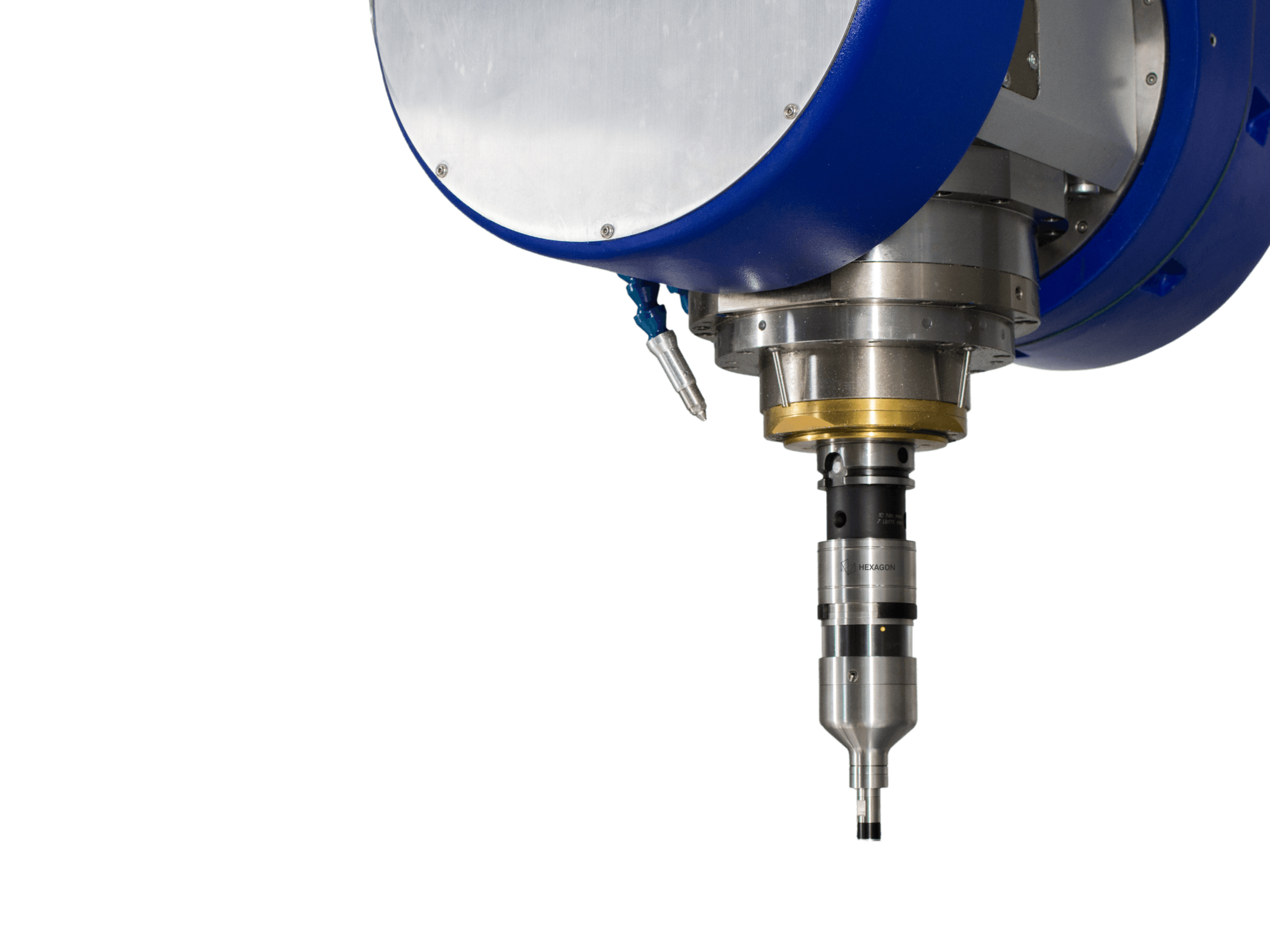

RWP20.50-G-UTP Ultrasonic Measurement Solution

The RWP20.50-G-UTP is a complete solution for wall thickness measurement directly on the machine tool.

Skip to

Complete solution for wall thickness measurement directly on the machine tool

The RWP20.50-G-UTP ultrasonic touch probe makes it simple to automatically measure the thickness of the walls of larger parts directly on the machine tool, resulting in significantly faster inspections and enhanced data capture.

RWP20.50-G-UTP Ultrasonic Measurement Solution Specifications

Accuracy

+/- 10 μm

Measuring range

Dry: 0,7 - 9mm

Wet: 0,7 - 9mm or 1,5 - 30mm

Temperature range

Operation: 10° – 50°C

Storage: 5° – 70°C

Power supply

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

IP68: EN60529

Signal transmission

Radio Wave

HxGN NC Measure (Software)

Intuitive, versatile, and user-friendly, simplify inspection processes for a range of parts on the machine tool.

Radio Receiver m&h RC-R-100

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.

RWP20.50-G-UTP Ultrasonic Measurement Solution

Complete solution for wall thickness measurement directly on the machine tool

RWP20.50-G-UTP Ultrasonic Measurement Solution Specifications

HxGN NC Measure (Software)

Radio Receiver m&h RC-R-100

m&H NC Gage (Software)

3D Form Inspect (Software)

3D Form Inspect Jobmaster (Software)
