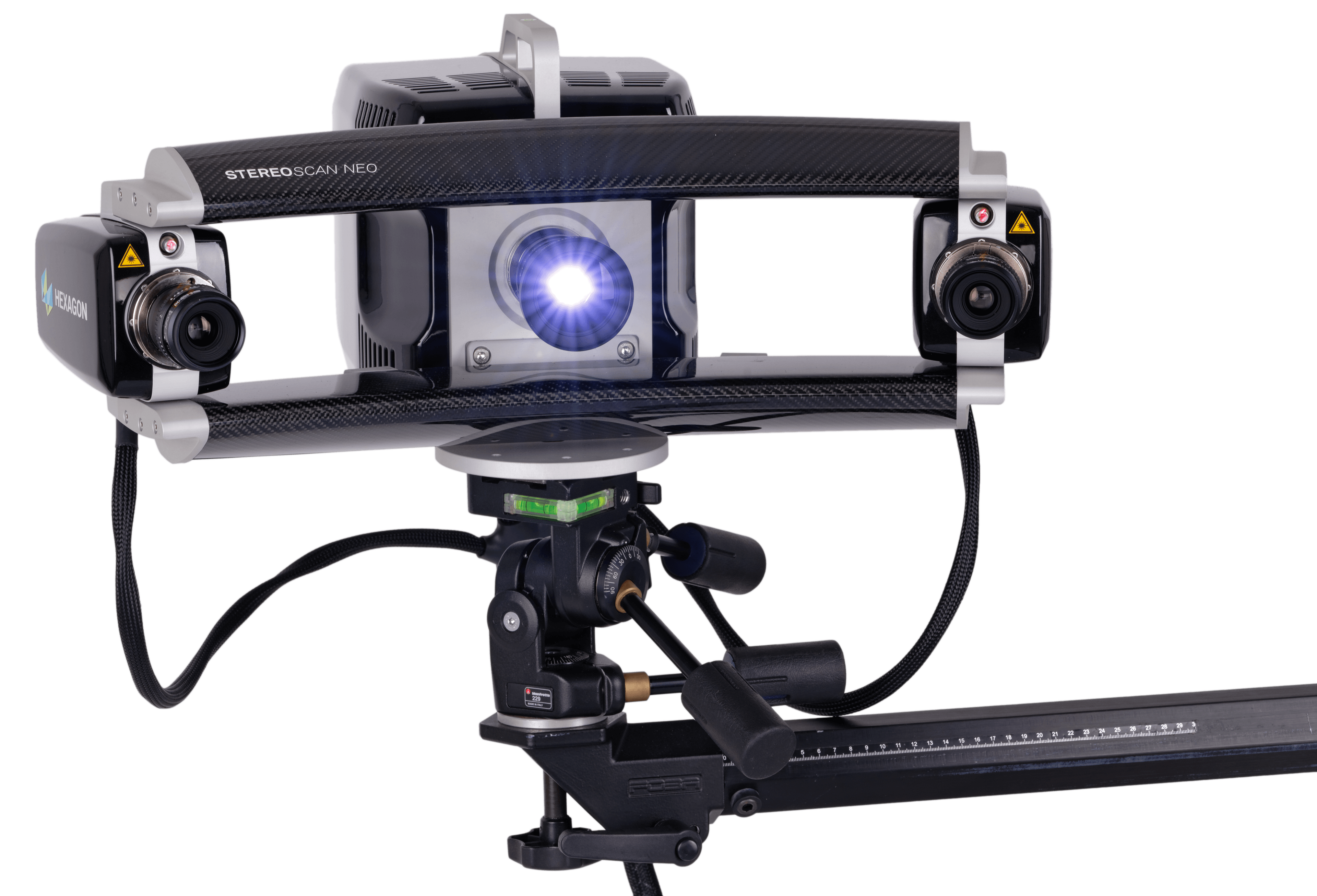

StereoScan neo

Conduct high-speed, comprehensive 3D scanning with a structured light-scanning system that delivers superior accuracy.

harware-info-image

The new benchmark in optical 3D scanning

As an unrivalled high-end structured light scanning system, the StereoScan neo R16.2 delivers superior resolution and accuracy alongside an array of innovative features that make area scanning more comprehensive than ever before.

benefits

Robust construction

Automation ready

Combination with DPA series

Dedicated software plug-ins

An unrivaled high-end structured light scanning system

With the StereoScan neo, Hexagon introduces the innovative Smart Phase Projection (SPP) technology, which employs a new fringe projection pattern to yield the highest quality data on even the most difficult surfaces. The SPP technology represents a large step forward in optical 3D scanning, improving on classic fringe projection patterns to allow for better scanning of glossy and dark surfaces without pre-treatment.

StereoScan neo Specifications

Camera sensor

Monochrome, CMOS, 4/3”

Camera resolution

16.8 MP | 5472 x 3084

Projection unit

Digital projector

Min. measuring time

1 sec.

Sensor weight

12 kg

Control unit​

Integrated, USB 3.0

Accuracy₁

From 5 μm (R16.2)

₁ Sphere spacing error.​
