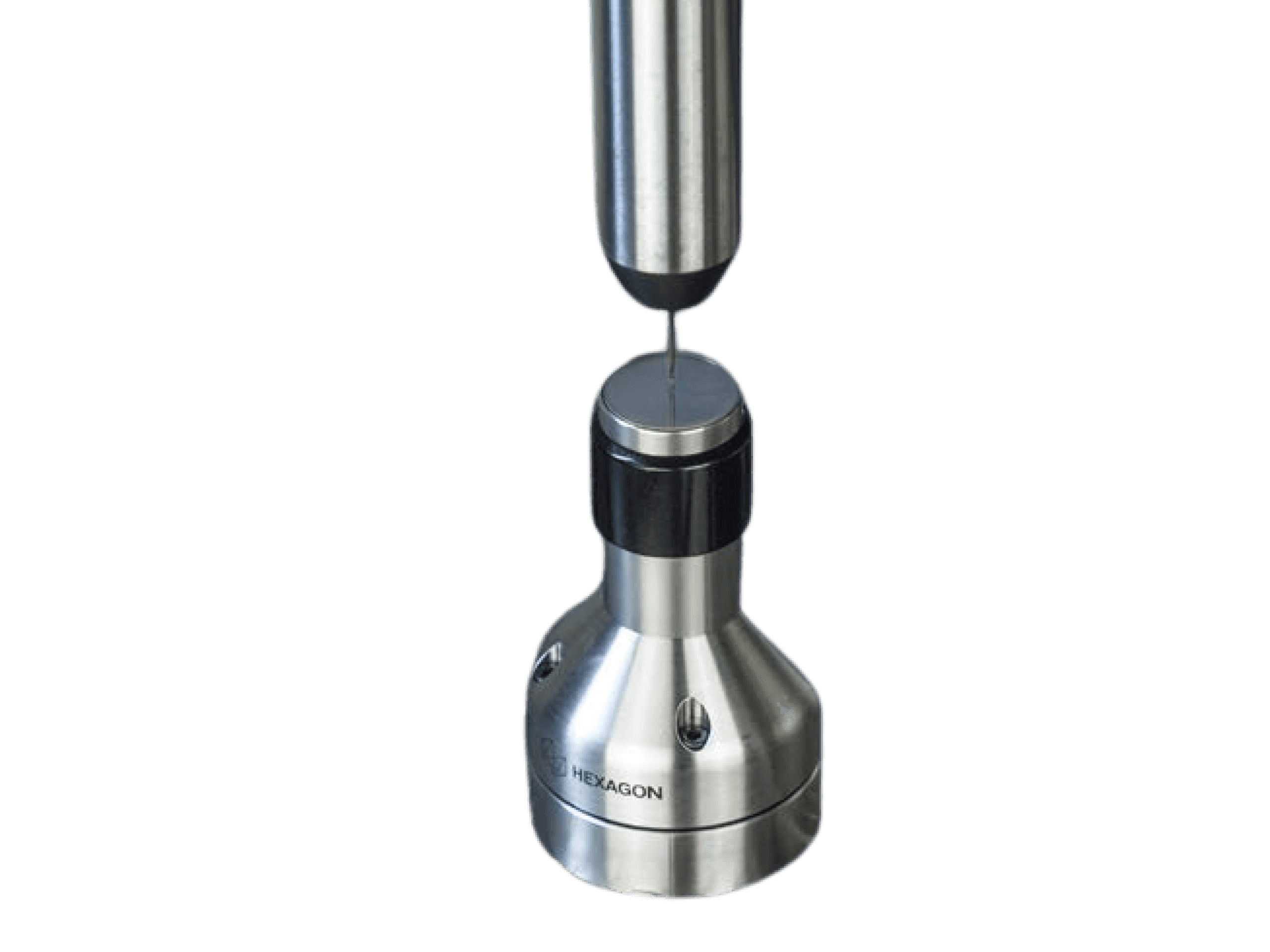

Tactile Cable Tool Setter m&h TS35.30
The m&h tool setter TS35.30 is designed for use on milling and machining centers.
Fast tool breakage control
It is suitable for tool length measurement and tool breakage detection on stationary tools. A particularly low friction linear guide makes it possible to safely measure delicate and very small tools. The fastening to the machine table also permits convenient alignment.
Benefits:
- Fast tool breakage control
- Sturdy and durable protected
- Fast and easy alignment
Tactile Cable Tool Setter m&h TS35.30 Specifications
Accuracy
0.5μm (max. 2 Sigma)
Triggering force
2,2 N
Temperature range
Operation: 10°C -50°C,
Storage: 5°C -70°C
Power supply
Battery 12 - 32 VDC, max 25mA with a cable
Protection class
IP68: EN60529
Signal transmission
Cable
